Vikylin 16ch Cctv System

★Tips
> APP : VideoLink (iOS, Android), support download by QR code > Search Tool: AjDevTool (search device and change IP address if needed) > PC Client: LMS > Default IP: 192.168.1.110 > Username: admin > Password: 123456 > Camera lens: 2.8mm/3.6mm/2mm/4mm   Please Note:
★Our cameras support the Onvif protocol and can be connected to other NVRs that support third-party Onvif protocols.   ★The camera has POE function, There is NO power adapter and NO cables in the Original package.
★Support batch order. If you want more and save more,please kindly contact us for a better price.
★Installers and traders are welcomed to contact for Bulk price and stock list.
★All the items are with 3 years warranty, if there is any problem with use, please contact with us at any time. ★Lifetime free after-sales technical service:We have very professinal tech, can help you set online(for free).

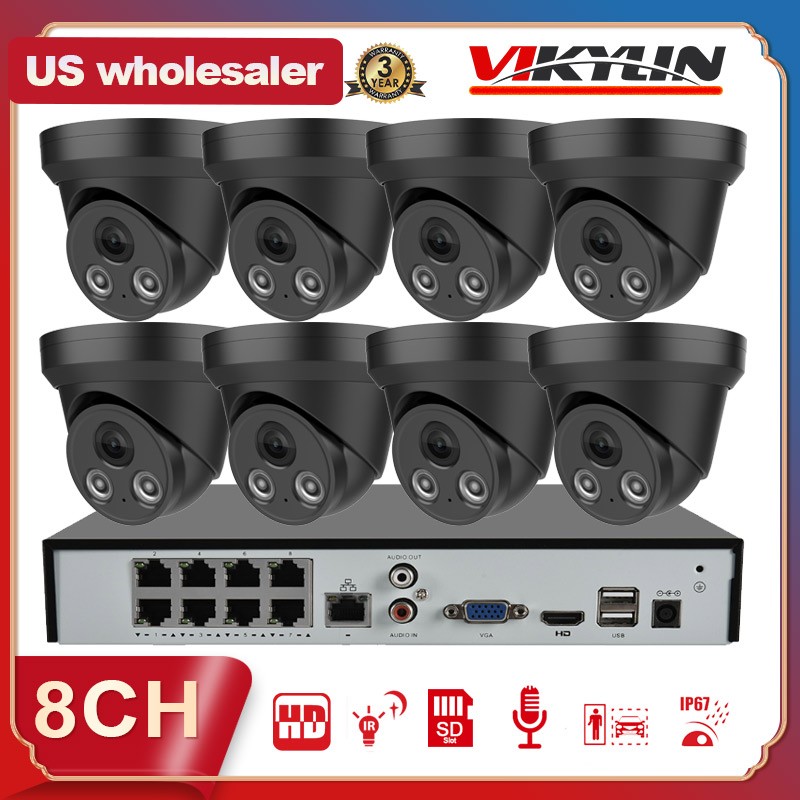

Vikylin 4MP IR Fixed Turret Network Camera

• 1/3" Progressive Scan  CMOS
• 2560 ×1440@25 fps
• 2.8 fixed lens
• H.265+, H.265,  H.264
• F2.0 lens
• Built-in Microphone
• IR Light Range: up to 30 m

• WDR/HDR/3D DNR/HLC/BLC
• Water and dust resistant(IP67)
• Color: 0.01 lux @(F2.0), 0 lux with IR light

• 3-Axis adjustmen

4K 16 Channel 16 POE Network Video Recorder 16CH NVR   >Support Ultra 265/H.265/H.264 video formats >16 channel input >Plug & Play with 16 independent PoE network interfaces >Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols >Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution >VGA and HDMI simultaneous output >Up to 12 Megapixels resolution recording >ANR technology to enhance the storage reliability when the network is disconnected >Support cloud upgrade

Camera

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.01lux @(F2.0),  0 lux with IR light

Shutter Speed

1/10 s to 1/10,000 s

Slow Shutter

Yes

Day & Night

IR cut Filter

Digital Noise Reduction

3D DNR 2D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Focal Length

2.8 mm

Aperture

F2.0

Focus

Fixed

FOV

2.8 mm, horizontal FOV: 94°, vertical FOV: 68°, diagonal FOV: 122°



Lens Mount

M12

Illuminator



IR  Light Range

Up to 30 m

Smart Supplement Light

Yes

Compression Standard





Video Compression

Main stream: H.265+/H.265/H.264

Sub-stream: H.265+/H.265/H.264

H.264 Type

High Profile/Main Profile/Base Profile

H.265 Type

High Profile/Main Profile/Base Profile

H.265+

High Profile/Main Profile/Base Profile

Smart Feature-set



Smart Event

Human detection, Vehice detection

Basic Event

Motion detection



Linkage Method

Trigger recording:  network storage, pre-record and post-record              Trigger captured pictures uploading: FTP, Email

Trigger notification: FTP, Email


Max. Resolution

2560×1440



Main Stream

50Hz: 25@FPS(2560×1440),25@FPS(2304×1296),25@FPS(1920×1080,1280 × 720)；

60Hz: 25@FPS(2560×1440),25@FPS(2304×1296),25@FPS(1920×1080,1280 × 720)；



Sub-Stream

50Hz: 30 fps (720 x 480,640 × 480, 640 × 360, 480 × 480,480 × 360,CIF)

60Hz: 30 fps (720 x 480,640 × 480, 640 × 360, 480 × 480,480 × 360,CIF)

Image Enhancement

WDR/HDR/3D DNR/2D DNR/HLC/BLC

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser

SVC

H.264 and H.265 and H.265+ encoding support

Day/Night Switch

Day/Night/Auto/Schedule

Network

Network Storage

Support local storage and NAS (NFS, SMB/CIFS)

Protocols

HTTP, RTSP, DHCP, FTP, NTP,ONVIF,P2P, DHCP,SMTP,RTMP

Client

AJ_Client,Without APP,Without H5 IE

Interface



Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Built-in Microphone

YES

Reset Key

NO

On-Board Storage

NO

General

Operating Conditions

-30 °C to +85 °C, humidity 95% or less (non-condensing)

Web Client Language



14 languages: English,Russian,German,Italian,Turkish, Korean,Japanese,Traditional Chinese,

Simple Chinese,Ukrainian,Portuguese,Croatian,Polish,Farsi



Power Supply

DC 12V 1A , Φ 5.5 *2.1mm coaxial plug power PoE(802.3af) Max.7.5W

Protection Level

IP67-Each Camera has been tested waterproof

Material

Front cover:metal,body:metal,bracket:metal ring:plastic



Dimensions

Camera: Φ 126 × 98 mm (Φ4.96" × 3. 86")

Package: 127 × 127 × 124 mm (5" ×5" × 4.88")

Weight

Camera: 605 g (1.32 lb.)

Decoding Capability

Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30

Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30



Decoding Capability Description

The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width

Audio Compression

G.711A, G.711U

Network

Incoming Bandwidth

160 Mbps

Outgoing Bandwidth

128Mbps

Remote Users

128



Protocols

TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP,    IPv6, IPv4

Browser(Plugin)

IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input

16-ch

RCA Audio Input

1-ch

Video/Audio Output



HDMI Output

4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz



VGA Output

1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

RCA Audio Output

1-ch

Liveview Display

1/4/6/8/9/16

Corridor Mode Screen

3/4/5/7/9/10/12/16

Two-way Audio

Two-way Audio

1-ch,RCA(Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot

4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)

Recording

Recording Resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF

Synchronous Playback in Local

16-ch

Smart



VCA Detection by IPC

Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People

Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring



Smart by NVR

Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)



VCA Search

Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor   Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch



Smart by IPC

All channels (up to 8 images/s in total)Face Detection, Face Comparison, Vehicle Detection, SIP, UMD, Traffic Monitoring

Vehicle Picture Library

Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total

SIP by NVR

2-ch

UMD by NVR

4-ch

Alarm



General Alarm

Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection



Alert Alarm

IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language







GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai,    Turkish, Spanish (LatinAmerica), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian,

Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA

2 SATA Interfaces



Capacity

Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature)

External Interface

Network Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface

USB

Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0

RS485

1

RS232

N/A

Alarm In

8-ch

Alarm Out

2-ch

Power Supply

AC 100~240V

PoE

PoE Interface

16 RJ45 10 M/100 M self-adaptive Ethernet Interface

Max Power

Max 30 W for single port, Max 240 W in total

Supported Standard

IEEE 802.3at, IEEE 802.3af

Working Environment

Working Temperature

-10 ℃ ~ + 55 ℃ (+14 吓 ~ +131 吓)

Working Humidity

≤ 90% RH (non-condensing)

Power Consumption (without HDD)

≤ 12W

Dimensions

Weight (without HDD)

≤ 2.7Kg (6.0lb)

Dimensions

380mm × 322mm × 53mm (15.0"×12.7"×2.1")

Certification

Certification

CE; FCC; UL; RoHS; WEEE

CE

EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035

FCC

Part15 Subpart B
